Product

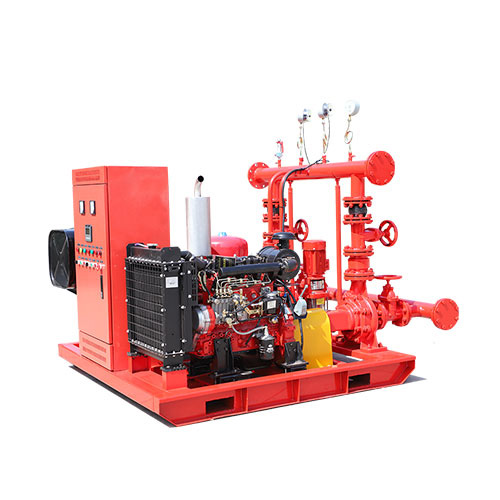

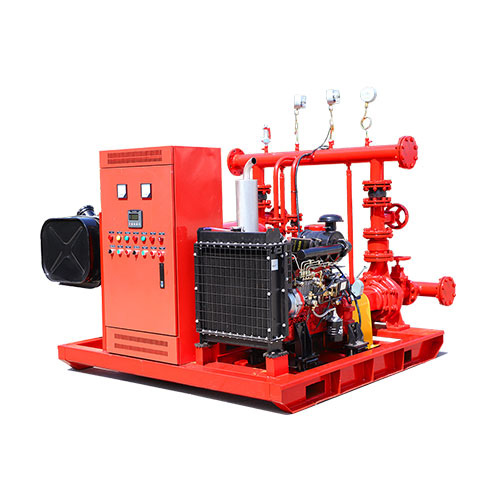

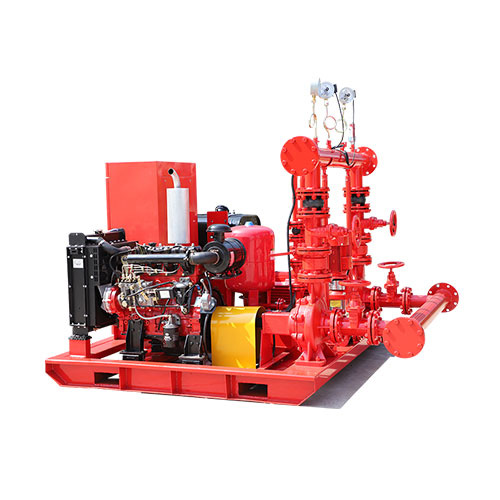

EDJ Fire pump set

Flow: 5-400L/s
Head: 3-15Bar
Caliber: 65-250mm
Pressure: 0.3~1.5MPa
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
  • Category :
    Fire Series
  • Browse number : ...
  • Release time : 2026-01-27
  • Detailed Description

5

                                                                                                                    Caliber: 50-200mm

                                                                                                                    Flow: 100,200,300,500,750,1000…GPM

                                                                                                                    Head: 3,4,5,6,8,9,10…BAR

                                                                                                                    Power: 10,15,25,40,75,100,150…HP

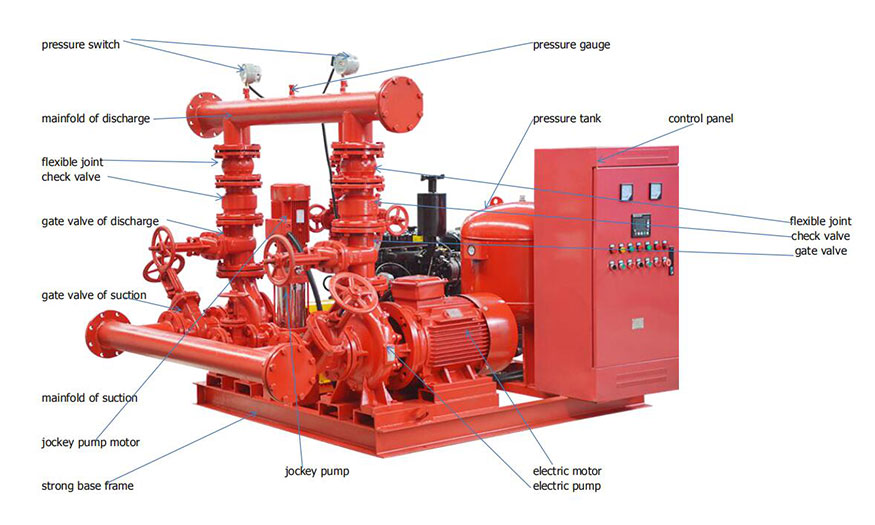

                                                                                                                    Operation: 1duty + 1 standby + 1 jockey

                                                                                                                    Contain: Electric, Diesel engine, Jockey pumps

                                                                                                                    System: pumps control panel, (pressure vessel) use for fire fighting

                                                                                                                    Material: HT200, SS304, Bronze, carbon steel

200GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/10-65L(65-250) 200 6 15 cast iron
Diesel engine XBC4/5-IS 200 6 22 cast iron
Jockey CDL4-90 20 7 22 SS304
500GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/30-100L(100-315A) 500 10 55 cast iron
Diesel engine XBC10/30-D 500 10 55 cast iron
Jockey CDL12-110 50 11 7.5 SS304
750GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/50-150L(150-315A) 750 10 90 cast iron
Diesel engine XBC10/50-D 750 10 90 cast iron
Jockey CDL16-100 70 11 11 SS304
more specification please contact us

Related Products:

                        E D                            2E J                           D J                            E D J

                                 E+D                                               2E+J                                           D+J                                               E+D+J

                      E+D small fire pump package                  2E+J fire fighting package                    D+J packaged fire pump                         E+D+J fire pump package





FQA:

Q1:What’s your brand?

A1:We are a factory, the goods we sold are from our factory. we have our own pump factory , motor factory, we can check all the details in our factory, and before shipping, we will do test.



Q2:Does all goods meet standard?

A2:Yes, all the goods are satisfied with domestic standard.



Q3:What certificate do you have the fire pumps ?

A3:There is no specific certificate for the whole machine, but the major parts like diesel engine fire pump, electric pump has reach the standard of CE.



Q4:How many countries have the pumps been exported to?

A4:Egypt, South Africa, Ethiopia, Argentina, Peru, Venezuela, Ecuador, Canada, Indonesia, Philippines, Mongolia, etc.



Q5:How to become our agent?

A5:As long as you have the marketing resources and the capacity to do after-sale service, contact us for further details by sending us an inquiry.



Q6:How about sample policy?

A6:We can give you a competitive price for the sample, the shipping fee will be at the client’s side. But the sample fee will pay back to you when you confirm the order.
